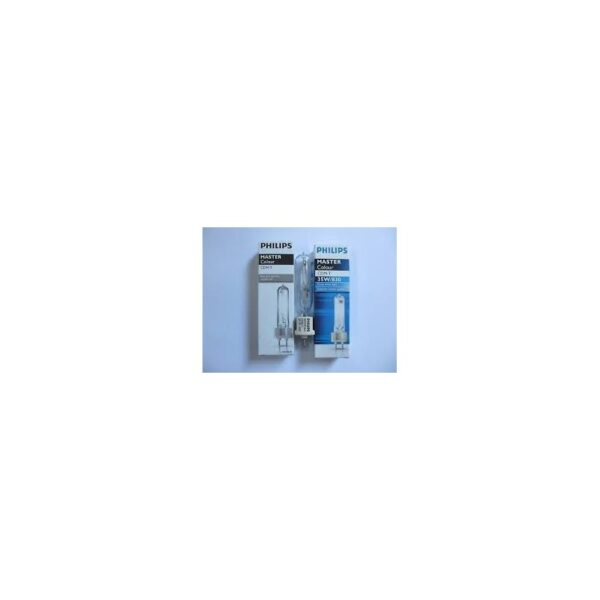

LAMPARA DE DESCARGA MASTERColour CDM-T 35W/830 G12 1CT/12

Descripción

Specifications

General Information

Cap-Base	G12  [ G12]
Operating Position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% Failures (Nom)	9000 h
Life To 10% Failures (Nom)	10000 h

Life to 20% Failures (Nom)	11000 h
Life to 50% Failures (Nom)	12000 h
ANSI Code HID	C130/E

Light Technical

Color Code	830  [ CCT of 3000K]
Luminous Flux (Rated) (Nom)	3120 lm
Color Designation	Warm White (WW)
Lumen Maintenance 10000 h (Nom)	50 %
Lumen Maintenance 2000 h (Min)	70 %
Lumen Maintenance 2000 h (Nom)	80 %
Lumen Maintenance 5000 h (Min)	60 %

Lumen Maintenance 5000 h (Nom)	70 %
Chromaticity Coordinate X (Nom)	0.428
Chromaticity Coordinate Y (Nom)	0.397
Correlated Color Temperature (Nom)	3000 K
Luminous Efficacy (rated) (Nom)	80 lm/W
Color Rendering Index (Nom)	81

Operating and Electrical

Power (Rated) (Nom)	39 W
Lamp Current Run-Up (Max)	0.8 A
Lamp Current (EM) (Nom)	0.53 A
Ignition Supply Voltage (Max)	198 V
Ignition Peak Voltage (Max)	5000 V
Ignition Supply Voltage (Min)	198 V

Ignition Peak Voltage (Min)	3500 V
Re-Ignition Time (Min) (Max)	15 min
Ignition Time (Max)	30 s
Voltage (Max)	96 V
Voltage (Min)	80 V
Voltage (Nom)	88 V

Controls and Dimming

Dimmable

No

Run-Up Time 90% (Max)

3 min

Mechanical and Housing

Bulb Finish

Clear

Approval and Application

Energy Efficiency Label (EEL)	A
Mercury (Hg) Content (Nom)	3.1 mg

Energy Consumption kWh/1000 h

43 kWh

UV

Pet (Niosh) (Min)

8 h/500lx

Damage Factor D/fc (Max)

0.3

Luminaire Design Requirements

Bulb Temperature (Max)	500 °C
Cap-Base Temperature (Max)	280 °C

Pinch Temperature (Max)

350 °C
